Solar Roof Rail + L‑Feet System: The Smart Choice for 2026 Installers

Why the L‑foot + rail combo? It’s faster, more waterproof, and holds your panels for 25+ years. Here’s why this PV mounting system is replacing traditional hooks.

What It Is

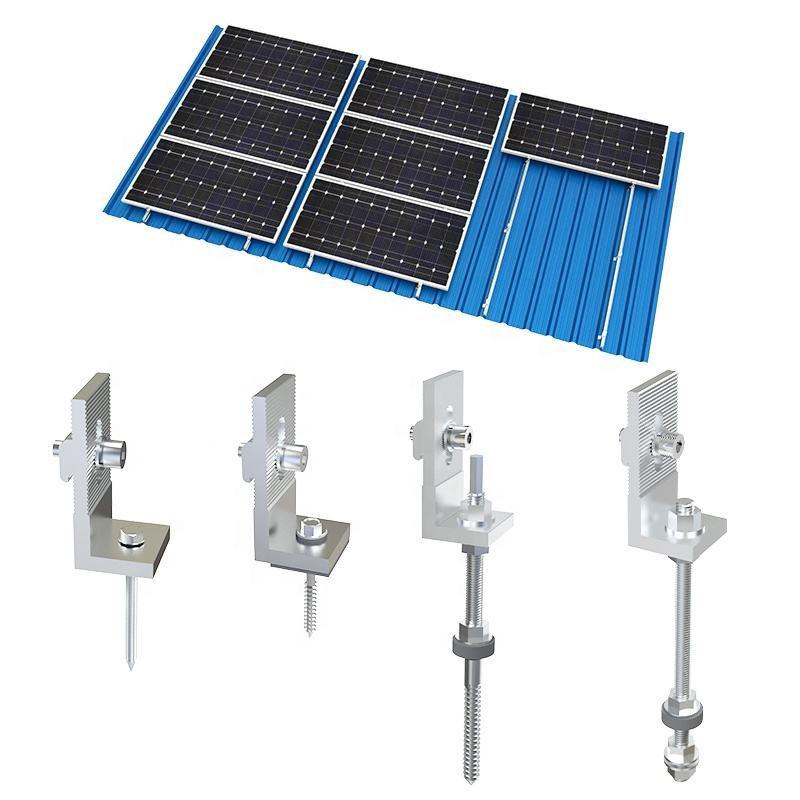

Solar L‑Foot + Aluminium Rail = a complete rooftop solar mounting solution.

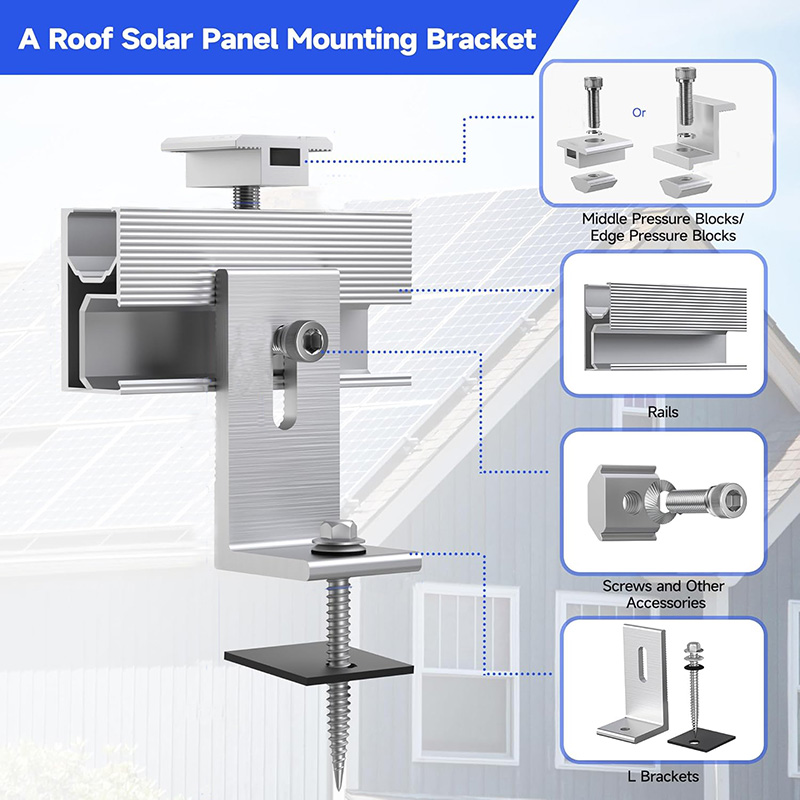

• L‑Foot: L‑shaped aluminium bracket, bolts directly to rafters. Built‑in EPDM gasket – one screw per foot.

• Rail: The aluminium channel that carries your solar panels. Provides the structural backbone.

You’ll often see terms like PV mounting rails, aluminium solar panel mounting rails, and solar racking system – all referring to this core setup.

Why Installers Love It (4 Key Benefits)

1. Superior Waterproofing
Traditional hooks need 2–4 screws per point. L‑foot needs just one. The factory‑fitted EPDM pad seals better than hand‑cut flashing. Many brands offer 10‑ to 25‑year leak warranties.

2. 35% Faster Installation
No hook‑slot measuring, no lead‑sheet cutting. One person fixes L‑feet, another snaps on rails. Lower labour, more jobs per quarter.

3. Sliding Adjustability
Traditional hooks lock the rail position. Miss by 2 cm? Redrill. With L‑feet, the rail slides forward/backward before tightening – saves hours and prevents unnecessary roof penetrations.

4. Works on All Roof Types

• Asphalt shingles – direct mount, tuck gasket under shingle

• Clay/concrete tiles – lift tile, screw to decking, replace tile

• Standing seam metal – clamp adapter, zero penetrations

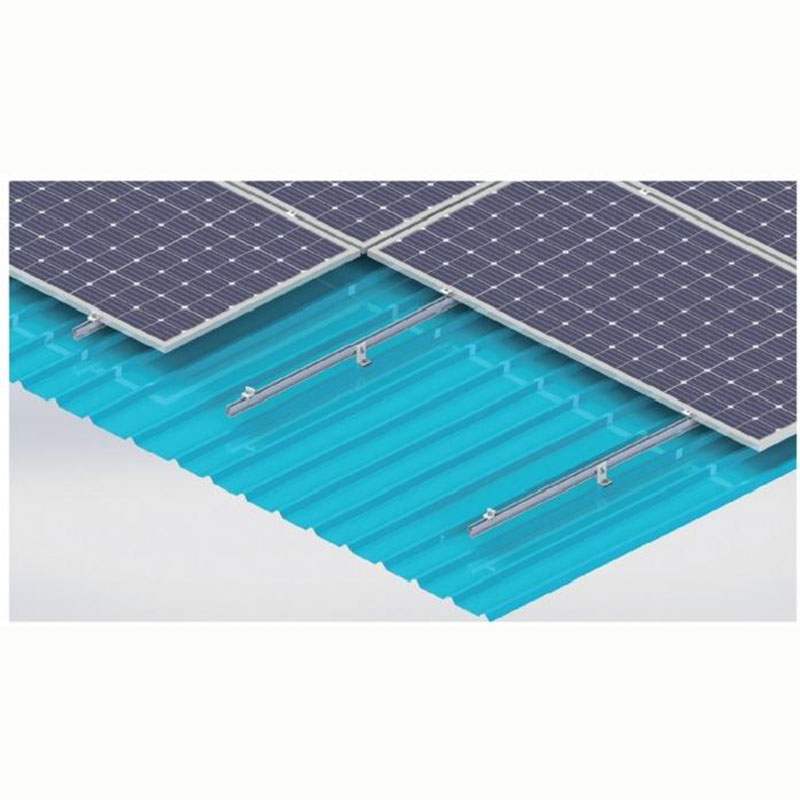

• Corrugated/trapezoidal metal – self‑tapping screws with sealing washers

One L‑foot bracket system covers them all.

Installation in 4 Steps

1. Mark L‑foot positions on the roof.

2. Secure L‑feet – with flashing for shingles, self‑tappers for metal.

3. Slide aluminium rails onto the L‑feet (D‑nut fits into rail groove).

4. Clamp panels using end and mid clamps, then install grounding.

What to Look For

Always check for UL 2703 certification – it covers mounting devices, clamps, and ground lugs. Also look for Class A Fire Rating; this simplifies permitting and insurance.

Market Snapshot

The global solar mounting market is over $30 billion in 2026 and growing fast. With distributed residential PV booming, waterproofing and installation speed are top priorities – exactly what the L‑foot + rail system delivers.

Bottom Line

Solar roof rail + L‑feet = fewer penetrations, faster installs, less stress on your roof, and proven reliability.

Whether you’re an installer, contractor, or homeowner – this system gives you the peace of mind you need.
